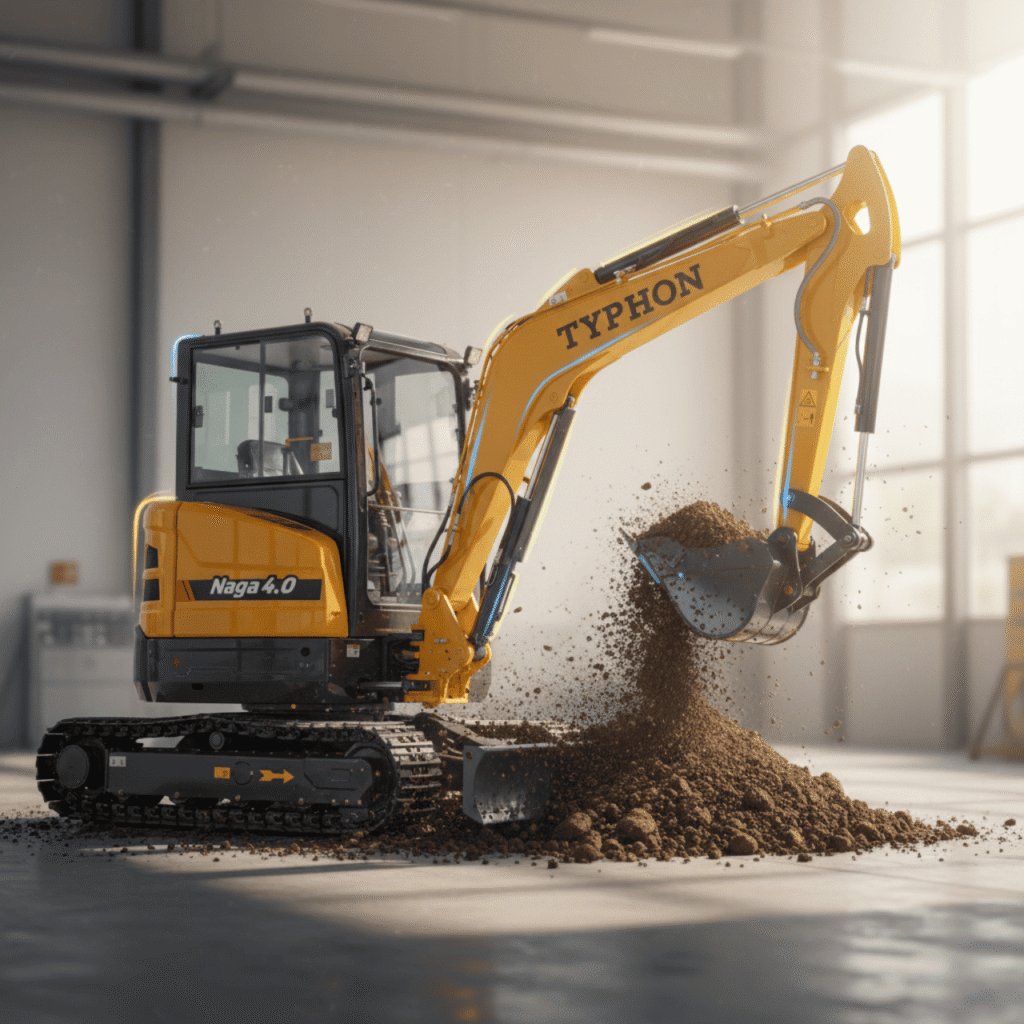

TYPHON NAGA 4.0 – 4-Ton Yanmar Mini Excavator with Metal Tracks Best Seller
Mini Excavators TYPHON TYPHON Mini Excavators

TYPHON NAGA 4.0 – 4-Ton Yanmar Mini Excavator with Metal Tracks

Explore the TYPHON NAGA 4.0 with 24.4 HP Yanmar power, metal tracks, zero-tail swing, ISO/SAE controls, two-speed travel, and high-flow hydraulics.

$4,800.00
In stock · Ready to ship
  • 30-day guarantee
  • Same-day quote
  • Freight nationwide
  • Support by phone
Call 917-695-2768 Request a Quote
SKU / ModelTYPHON-NAGA-40-4-TON-YAN
AvailabilityAvailable now
🛠️
Lifetime Tech Support
Ongoing Product Assistance
🚜
24.4 HP Yanmar Diesel
EPA Tier 4 Final Engine
🚚
Free US Shipping
Heavy-Equipment Delivery

4-Ton Zero-Tail Performance with Metal-Track Durability

The TYPHON NAGA 4.0 combines a compact zero-tail-swing design with a 24.4 HP Yanmar 3TNV88F diesel engine, metal tracks, selectable ISO/SAE controls, two-speed travel, and powerful auxiliary hydraulics. Built for trenching, foundations, commercial construction, utility work, material handling, and operation in confined urban jobsites.

Key Highlights & Capabilities

  • Yanmar Diesel Power: The 1.642 L three-cylinder 3TNV88F delivers 18.2 kW / 24.4 HP at 2,200 RPM.
  • Zero-Tail Swing: A compact rear structure, 860 mm tail swing radius, and 360° rotation support work in confined areas.
  • Strong Breakout Performance: Provides 30.4 kN bucket force and 18.2 kN arm force for demanding soil conditions.
  • ISO/SAE Selectable Controls: Allows operators to select the joystick pattern that matches their experience.
  • Two-Speed Travel: Offers a 2.4 km/h low range for torque and slopes and a 4.4 km/h high range for jobsite travel.
  • Metal Tracks: Provide durable traction for rocky terrain, demolition areas, and harsh operating conditions.
  • Attachment-Ready Hydraulics: A 96.8 L/min auxiliary circuit and three-way stop valve support compatible hydraulic attachments.
  • Digital Operator Interface: A 7-inch touchscreen displays operating data, hydraulic status, hours, fault codes, maintenance reminders, and control selection.

Technical Specifications

SpecificationDetails
BrandTYPHON Machinery
ModelNAGA 4.0
SKU / MPNTYPH-NAGA4
GTIN5061030741863
Operating Weight4 ton (approximately 8,000 lb)
Overall Dimensions4,880 × 1,740 × 2,550 mm
EngineYanmar 3TNV88F diesel
Engine Configuration1.642 L, three-cylinder, water-cooled, direct injection
Engine Output18.2 kW / 24.4 HP at 2,200 RPM
EmissionsEPA Tier 4 Final / EU Stage V
Fuel Capacity50 L
Hydraulic Oil Capacity40 L
Engine Oil Capacity6.7 L
Auxiliary Hydraulic Flow96.8 L/min
Bucket Force30.4 kN
Arm Force18.2 kN
Bucket Width / Capacity650 mm / 0.12 m³
Tail Swing Radius860 mm
Boom Swing55° left / 55° right
Upper RotationContinuous 360°
Swing Speed0–9 RPM
Travel Speeds2.4 km/h low / 4.4 km/h high
Track TypeMetal tracks
Track Length / Gauge2,155 mm / 1,440 mm
Gradeability30°
Control PatternSelectable ISO / SAE
Included AccessoriesDigging bucket, toolbox, fire extinguisher, emergency window/seatbelt tool, and digital manual
Cabin Configuration Confirmation
The source title presents an AC/heater cabin, while the detailed description also calls the enclosed cabin optional. Confirm whether the cabin is included in the advertised price before publishing or accepting an order.
Delivery & Operating Notice
Confirm freight access, unloading requirements, trailer capacity, machine dimensions, attachment compatibility, and cabin configuration before ordering. Follow the operator manual, rated operating limits, maintenance schedule, and all applicable jobsite safety requirements.
1-Year Warranty+
This machine is advertised with a one-year warranty. Contact the seller for complete coverage, exclusions, eligibility, claim documentation, and service instructions.
Shipping+
Free shipping from the United States is advertised. Heavy-equipment delivery requires suitable site access and may require unloading equipment. Confirm delivery arrangements and location-based restrictions before ordering.
Return & Exchange Policy+

Inspect the machine promptly after delivery and report damage, defects, or an incorrect shipment with order information and supporting photographs.

The source listing advertises a 30-day return and exchange period. Obtain return authorization and confirm eligibility, documentation, freight responsibility, and all applicable terms before returning machinery.
