TYPHON TERROR XIII PRO STORM – 1.3-Ton Honda Mini Excavator
Shop the TYPHON TERROR XIII PRO STORM with a 22.1 HP Honda GX690 engine, canopy, hydraulic thumb, digging bucket and compact 1.3-ton design.
- 30-day guarantee
- Same-day quote
- Freight nationwide
- Support by phone

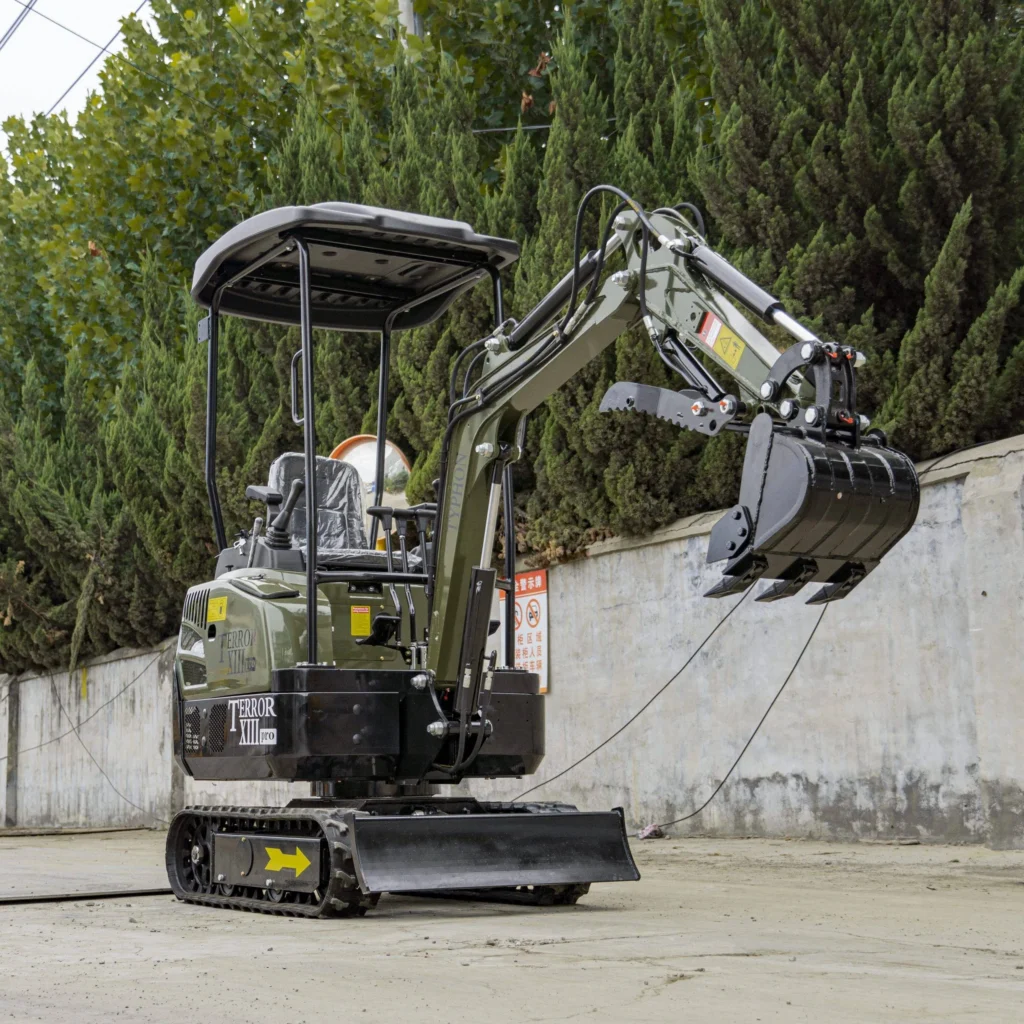

TYPHON TERROR XIII PRO STORM 1.3-Ton Mini Excavator
The TYPHON TERROR XIII PRO STORM is a compact trench digger powered by a 22.1 HP Honda GX690 engine. With a protective canopy, included hydraulic thumb, useful digging reach, and a maneuverable footprint, it is built for landscaping, farms, gardens, orchards, public spaces, and modest construction projects.
Powerful Honda GX690 Engine
The Honda GX690 is a 688 cc, air-cooled, four-stroke V-twin OHV gasoline engine producing 22.1 HP (16.5 kW) at 3,600 RPM and 35.6 lb-ft (48.3 Nm) of net torque at 2,500 RPM. Forced lubrication, digital CDI ignition, a two-barrel carburetor, and electric start support dependable, smooth operation.
Designed for Confined Work Areas
A 795 mm tail turning radius and 1,530 mm minimum rotation radius help the excavator maneuver around buildings, garden beds, trees, fences, and other site constraints. Its compact form is well suited to residential access and small commercial work where larger machinery may be difficult to position.
Versatile Digging and Material Handling
The excavator reaches a maximum digging depth of 1,710 mm and a maximum digging height of 2,270 mm. Its 0.025 m³ bucket supports excavation and cleanup, while the included hydraulic thumb improves control when moving stones, branches, debris, and other irregular materials. The dozer blade can dig to 270 mm for grading and backfilling.
- Compact 1.3-ton mini excavator
- Honda GX690 688 cc V-twin gas engine
- 22.1 HP at 3,600 RPM
- 48.3 Nm of net torque at 2,500 RPM
- 1,710 mm maximum digging depth
- 2,270 mm maximum digging height
- 0.025 m³ digging bucket
- Hydraulic thumb clip and canopy included
- Electric start and forced engine lubrication
Technical Specifications
| Specification | Details |
|---|---|
| Brand / Model | TYPHON TERROR XIII PRO STORM |
| Machine Class | 1.3 ton |
| Engine | Honda GX690 gasoline engine |
| Engine Type | 688 cc, air-cooled, four-stroke V-twin OHV |
| Rated Power | 22.1 HP / 16.5 kW at 3,600 RPM |
| Net Torque | 35.6 lb-ft / 48.3 Nm at 2,500 RPM |
| Starting System | Electric start |
| Ignition | Digital CDI |
| Lubrication | Forced lubrication system |
| Maximum Digging Depth | 1,710 mm (67.3 in) |
| Maximum Digging Height | 2,270 mm (89.4 in) |
| Minimum Rotation Radius | 1,530 mm (60.2 in) |
| Tail Turning Radius | 795 mm (31.3 in) |
| Bucket Capacity | 0.025 m³ |
| Dozer Blade Digging Depth | 270 mm (10.6 in) |
| Operator Protection | Canopy |
| Included Equipment | Standard digging bucket, hydraulic thumb, toolbox, canopy, and digital manual |
Ready for Small Construction and Property Work
The TERROR XIII PRO STORM is suited to drilling, digging, grabbing, bulldozing, ditch cleaning, light rock breaking, landscaping, and small construction work. Its combination of Honda power, compact movement, useful digging range, and an included thumb makes it a flexible addition to farms, landscaping operations, and contractor fleets.
Warranty
Includes a one-year warranty, subject to the seller's published warranty terms.
Shipping
Free shipping from the United States is advertised for eligible equipment orders.
Returns & Exchanges
Eligible orders may qualify for return or exchange within 30 days under the seller's policy.
